Water Resistant Bait Sensitive (Cap Insensitive) Explosive
Description

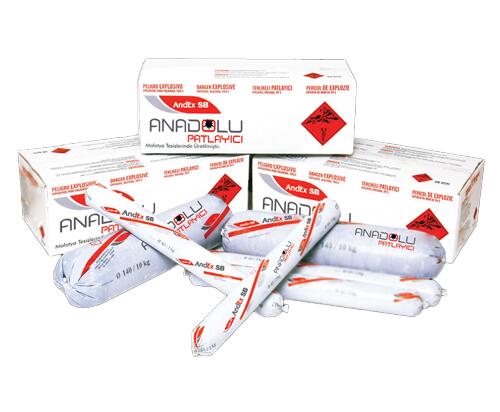

Andex SB, decoy sensitive explosive
It is the result of the most advanced developments in technology.
Andex SB is a highly sensitive, affordable
It is explosive. The gel structure gives the product a hard rubber-like texture.
It provides consistency and exceptional water resistance.
Andex SB with different hole geometries
They are produced in various diameters for applications.
Application
Andex SB is used in quarries, mines and construction
difficult rock construction under wet conditions in the fields
It is an ideal choice for blasting.
Water resistance allows its use in wet boreholes. Do not use in flammable or methane atmospheres. This product is booster sensitive. The temperature of this product should be withnin the range of -10C and
Disposal of explosive material can be dangerous, According to the instructions in the Material Safety Data Sheet ensure that appropriate security measures are implemented be.
To maintain the properties of Anadolu's explosives, we recommend they
be stored in authorizde deposits, in a cool dry place, with good ventilation
Density | 1.15-1.20 gr/cm3 |
Detonation Speed* | 3,200** - 6,500*** m/s |
Relative Weight Resistance | 118 |
Relative Bulk Resistance | 170 |
Gas Volume | 1017 lt/kg |
Transport Classification | 1.1D |
UN Number | 0241 |
1 Andex SB: Density 0.80 gr/cm3, Effective energy 2.59 MJ/kg.
* Detonation speed depends on application, anchor, blasting environment, and explosive density
The maximum value in the range is the ideal blasting speed
** Test result inside a 45 mm diameter iron pipe
*** Test result inside a 125 mm diameter iron pipe
Diameter x Length(mm) | Cartridge Weight(gr) | Cartridge/Box | Box Weight(kg) | Packaging Type |
---|---|---|---|---|
50x530 | 1250 | 16 | 20 | Plastic film cartridge (HDPE) |
65x520 | 2000 | 10 | 20 | Plastic film cartridge (HDPE) |
75x560 | 2857 | 7 | 20 | Plastic film cartridge (HDPE) |
90x550 | 4000 | 5 | 20 | Plastic film cartridge (HDPE) |
125x590 | 8500 | 2 | 17 | Plastic film cartridge (HDPE) |
140x520 | 10000 | 2 | 20 | Plastic film cartridge (HDPE) |
This is a standard production list, and production is available in different diameters and sizes.
